TC-WA Adapter Adjustment

TC-WA Adapter Adjustment

Info

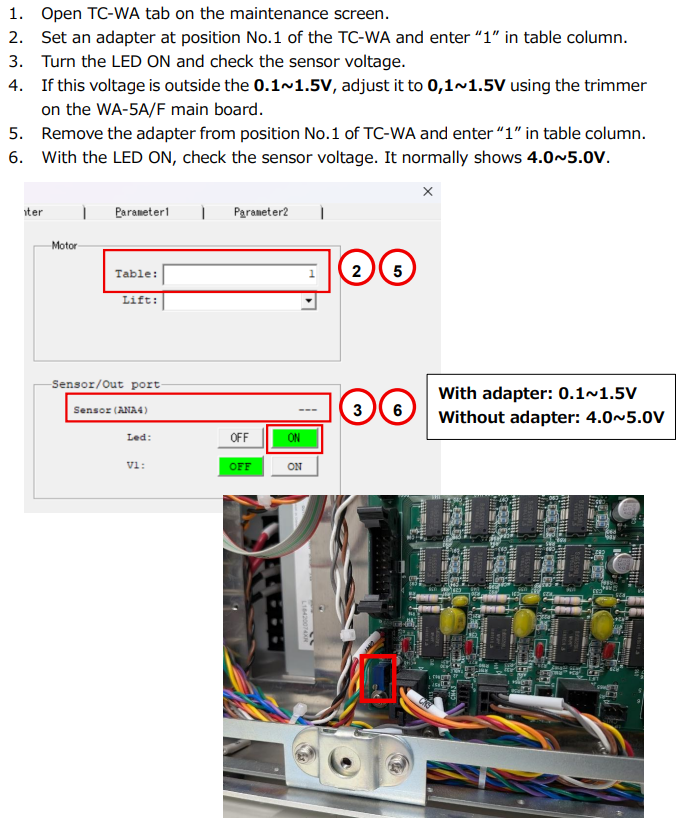

This procedure is required when a new TC-WA is installed, or the main board of the WA-5A/F is replaced.
