MA-3 Solo Sample Fork Replacemenmt

MA-3 Solo Sample Fork Replacemenmt

Remove Sample Fork Assembly from the MA-3 Solo by removing the two screws attached to the sliding rail.

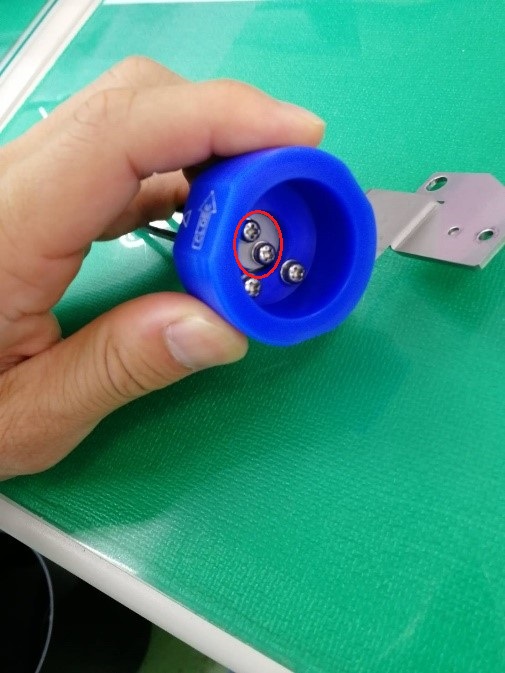

Remove the fork portion from the rest of the assembly by removing the two screws in the center of the assembly.

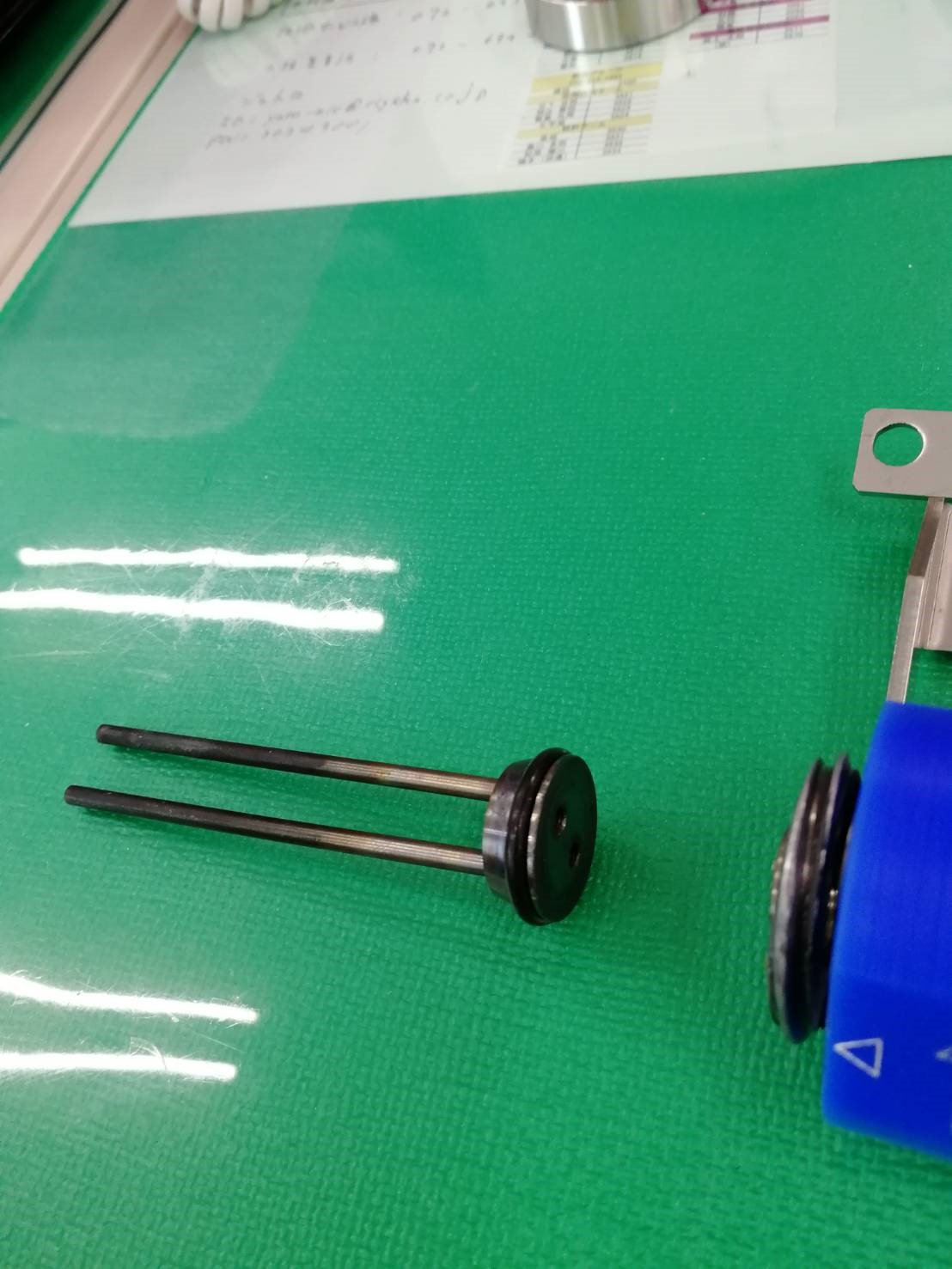

Attach the replacement fork to the rest of the assembly

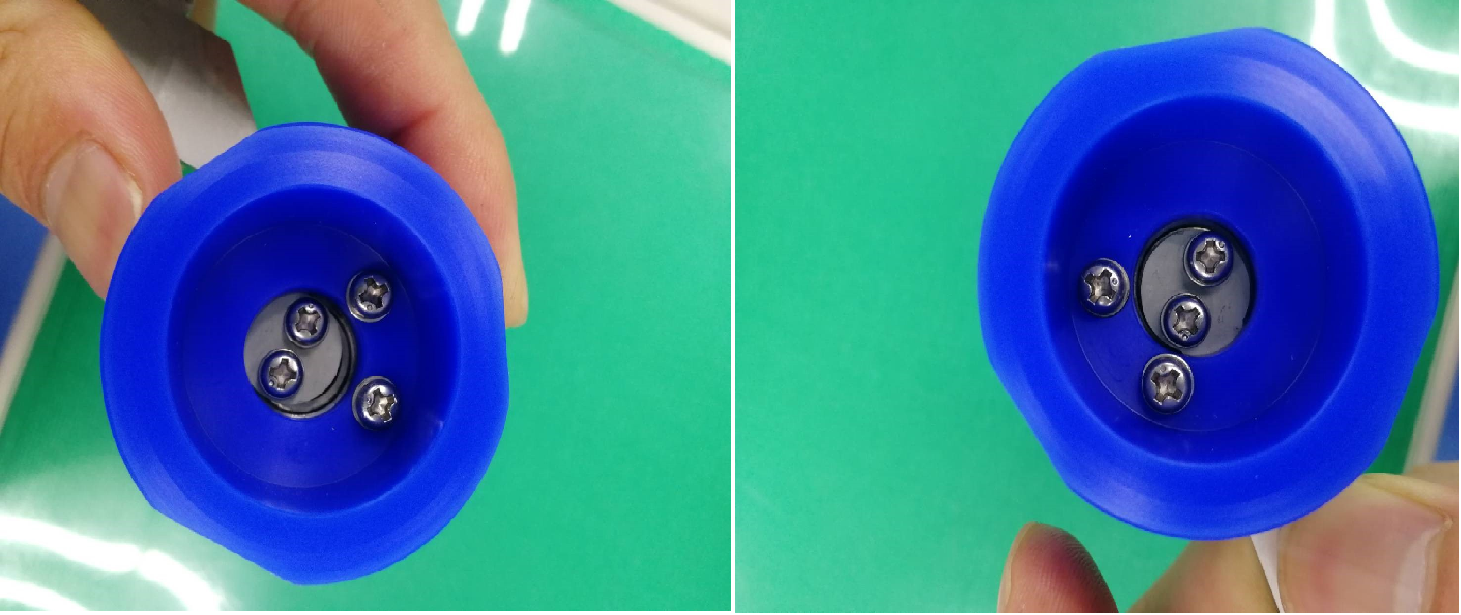

Please ensure that the fork is centered (see examples below)

Bad Example                                                                                                            Good Example

Reattach the assembly back onto the sliding rail and check for closing functionality.
