MA-3 Solo Flow Sensor Replacement

MA-3 Solo Flow Sensor Replacement

How to install new flow sensor



1.     Remove 8 screws and remove front cover



2.     Remove old flow sensor

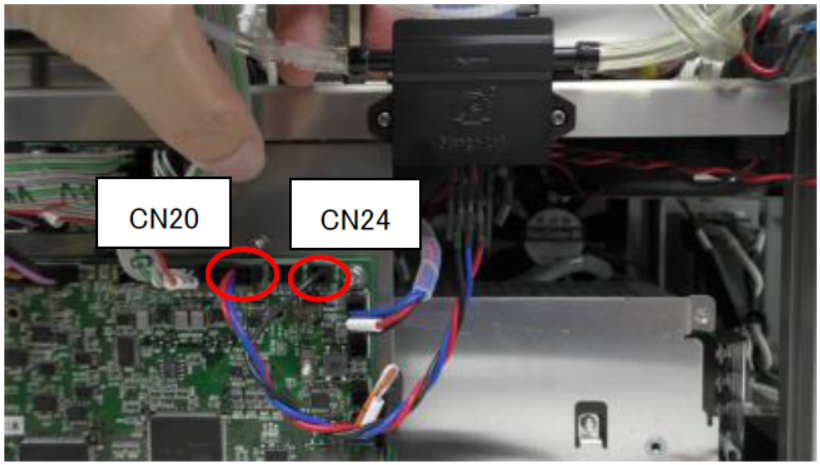

3.     Attach new flow sensor. Connect with CN20 and CN24.




Put back front cover and check flow rate.
