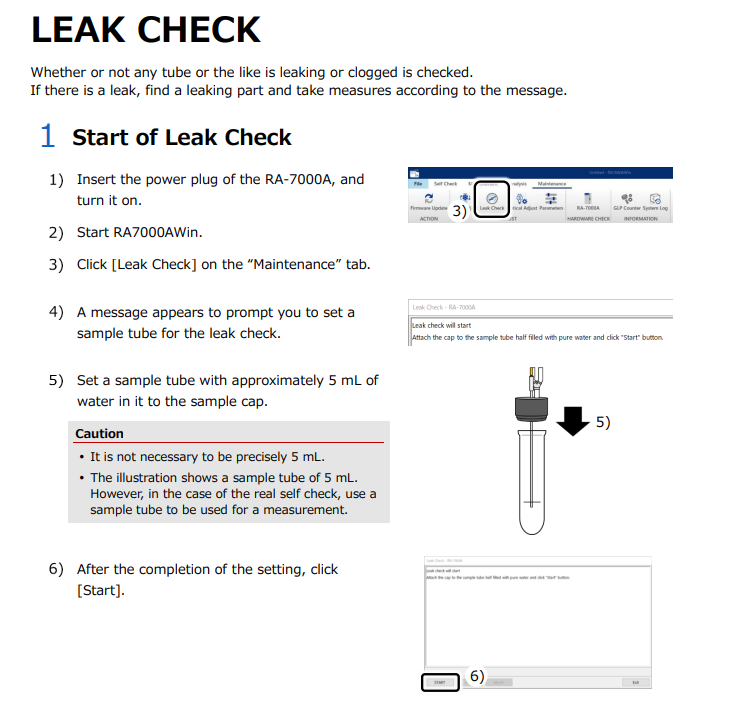

RA-7000A Leak Check Procedure

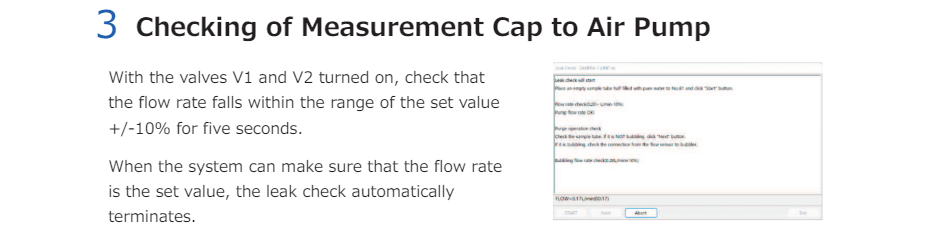

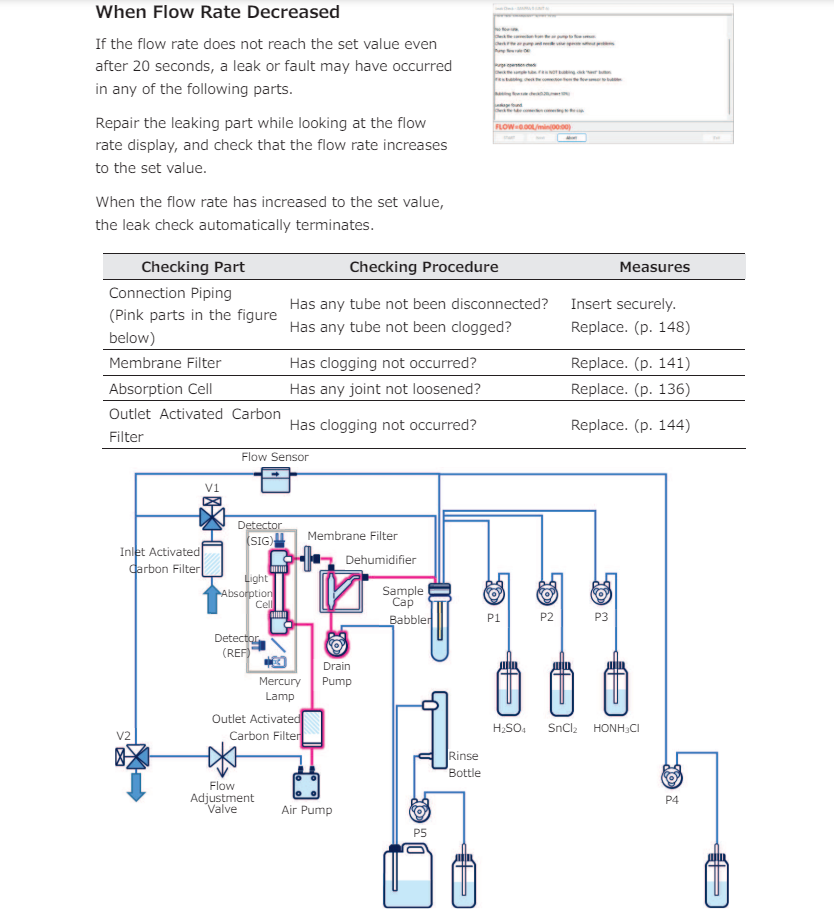

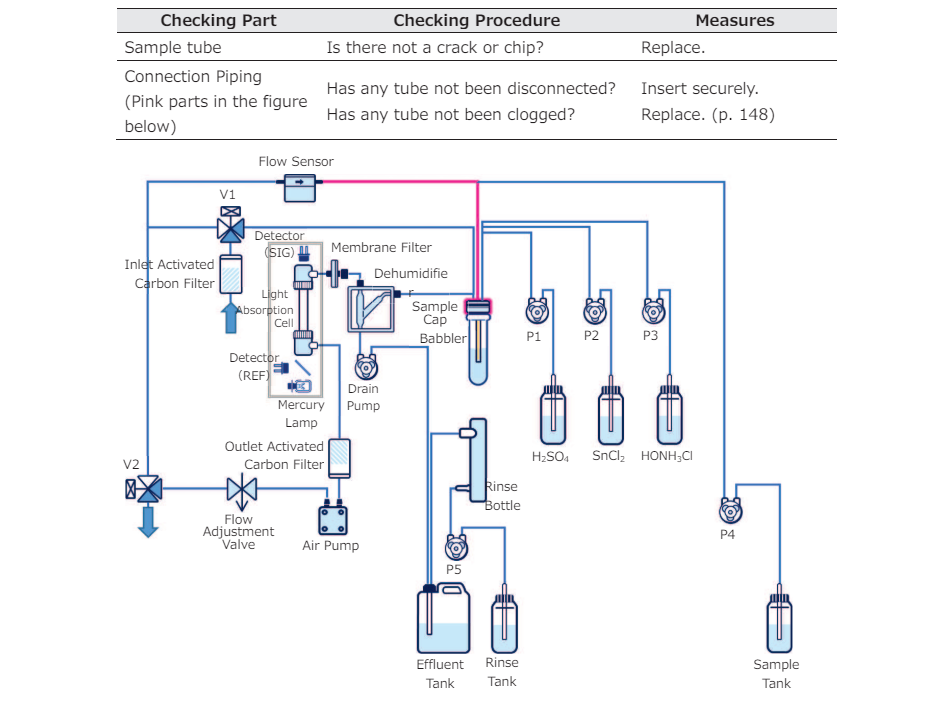

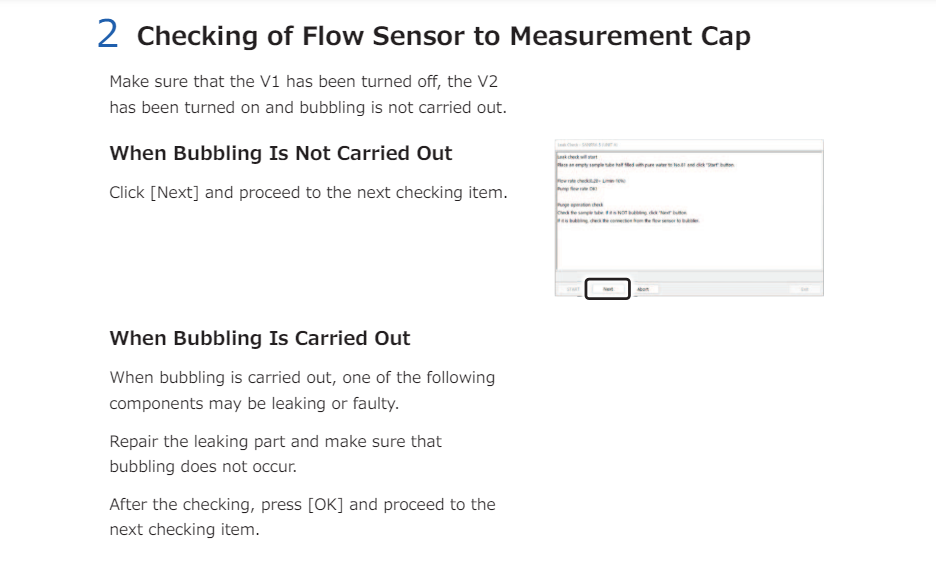

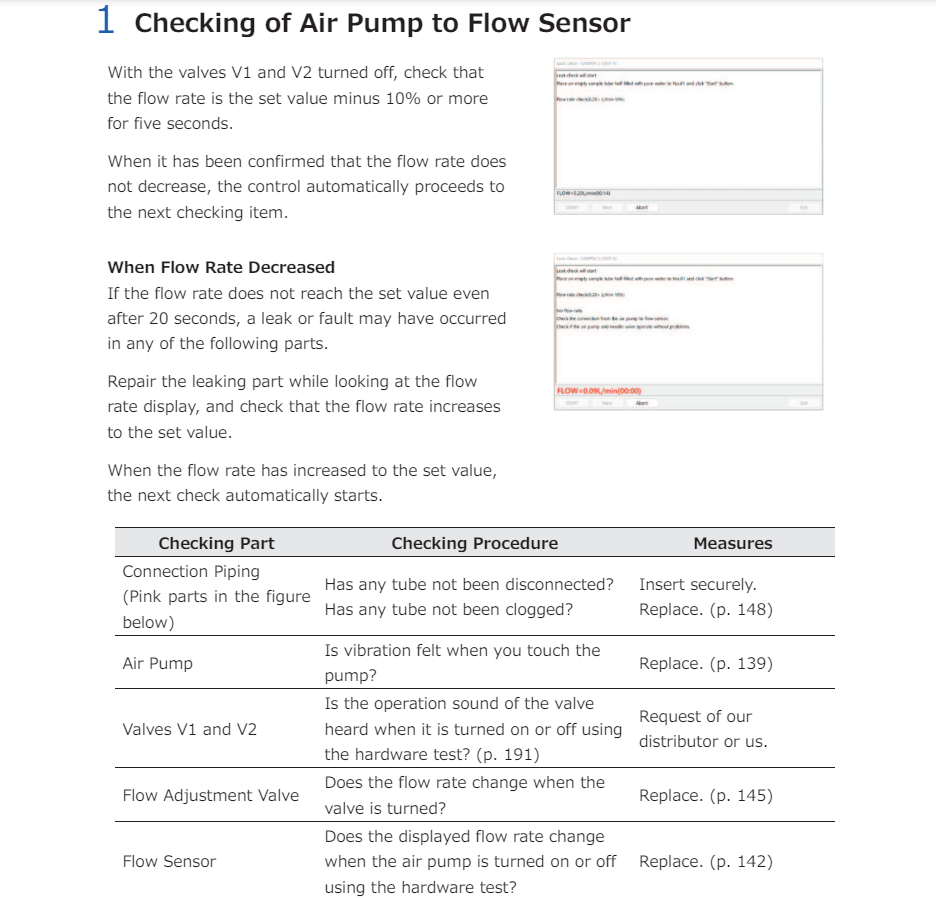

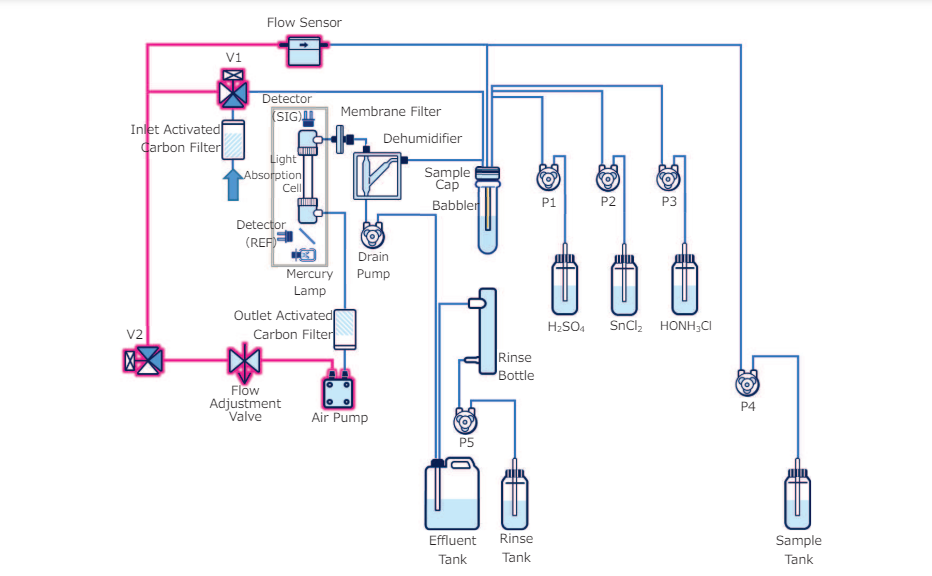

There are three (3) stages of the leak check, or 3 different pathways. (1) Air pump to the flow sensor (2) Flow Sensor to Measuring Cap (3) Measuring Cap to Air Pump.
